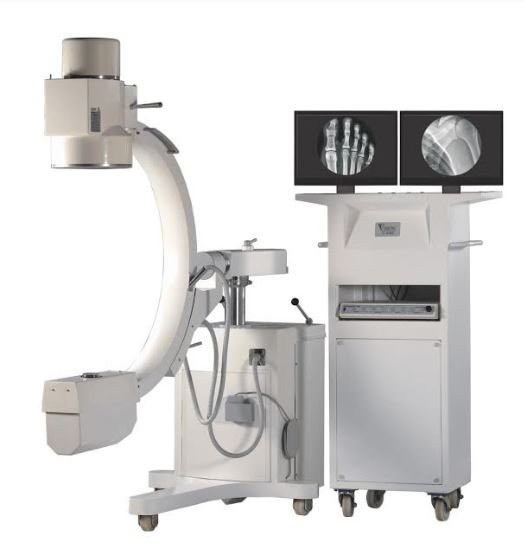

Vision C-Arm 9 inches(ModelCode-CVISION9 HF)
(8 reviews)Features :
Image Intensifier:
* Image Intensifier Tube: 9 inch, Triple Field
* CCD Camera: High resolution CCD Camera. 0.5 inch size
* Monitor: 17 inch pair of imported monitors with high density & high resolution. Active monitor with 360 degree motorized images rotation
* Company make:ThalesC-Arm Mobile Stand:
* Rotation: 360 degrees
* Motorized Up/Down: 450mm
* Horizontal Travel: 230mm
* Arc Orbital Movement: 115degrees
* Wig Wag: 15 degree left & right from center
* Focus Screen Distance: 900mm
* Clearance: 800mmX-Ray Generator:
* Power: 3.5 KW
* Output Frequency: 40KHzImage Memory System:
* Memory with 25/100 images storage capacity
* Analog as well as VGA output
* Digital image rotation for orientation
* Contrast stretching and negative image facility
* Full functioning of IR remote control
* USB FunctionalPower Supply:
* 230VAC 15Amp 50Hz
